Two landmark systems join the fleet: PlayStation 2 (#61, 2000) — MIPS R5900 Emotion Engine (EE) 294MHz + Graphics Synthesizer (GS) + 640×448; Xbox 360 (#62, 2005) — IBM Xenon PowerPC triple-core (3×PowerPC 5xx cores, SMT) + Xenos GPU (ATI Xenos, unified shader) + 1280×720 HD. The Xbox 360 is the first HD-capable (720p) and first multi-core console in the fleet, and the first proprietary PowerPC console since the GameCube/Wii line. 62 LAUNCHABLE systems. (sigil-retropie f65664a, 0f78790)
PlayStation 2 — system #61 (f65664a)
Core: cores/ps2.sg. uart=61 PASS. apps/ps2 (EL0), loads /roms/game.iso (PS2 ISO format).
CPU: MIPS R5900 "Emotion Engine"
The EE is a 128-bit MIPS III derivative running at 294MHz, distinguished by its SIMD "Multimedia Instructions" (128-bit MMI) and an integrated integer FPU. The Emotion Engine is not just a CPU — it integrates the entire compute cluster of the PS2 on one die:
- Scratchpad RAM: 16KB of on-die SRAM, zero-latency for the EE core — used for DMA descriptors and tight inner loops.
- VU0 / VU1: vector units operating as COP2 coprocessors. VU0 runs inline with the EE pipeline for skinning and physics; VU1 runs independently as a microprogram engine for geometry transformation.
- IPU: MPEG-2 decode in hardware — FMV cutscenes offload entirely to the IPU, leaving VU1 free for geometry.
- DMA controller: 10-channel DMA connects EE, GS, SPU2, IOP, and the scratchpad. Almost all PS2 data movement is DMA-driven.
GPU: Graphics Synthesizer

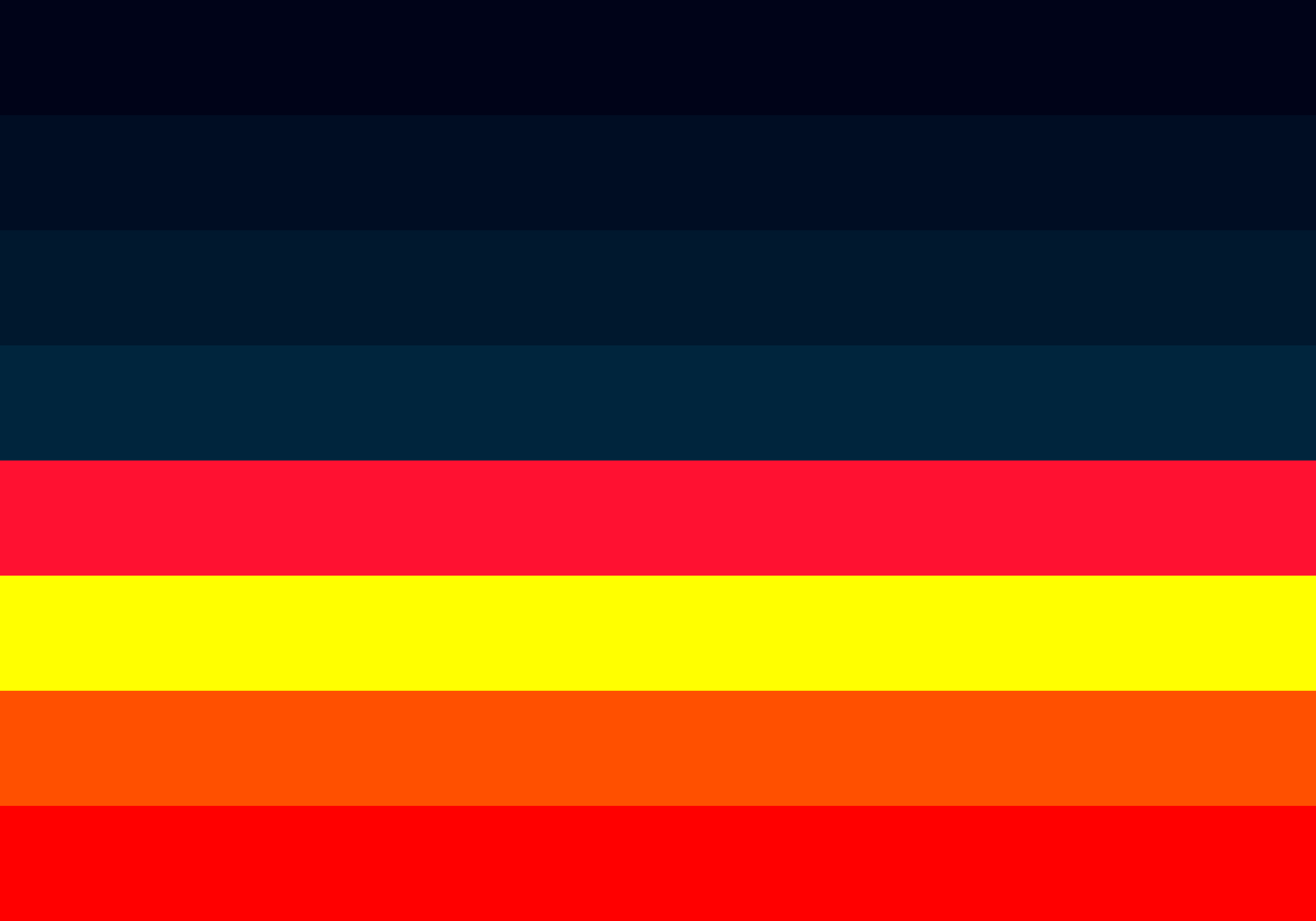

The GS is a massive fill-rate rasterizer rated at 2.4 Gpixel/s peak. Crucially, there is no vertex shader on the GS — all transform and lighting (T&L) runs on the EE's VU units. The GS receives fully transformed primitives and rasterizes them at high fill rate. It renders to its own framebuffer and outputs at 640×448 (PAL/NTSC interlaced native). ps2_render copies the GS framebuffer to the display surface.
Memory: 32MB RDRAM main + 4MB VRAM (eDRAM on GS die). The RDRAM bus was controversial for its high latency but delivers the bandwidth the EE's DMA engine needs.
Architecture note: R5900 vs PSP Allegrex
The PS2's R5900 is the second MIPS system in the fleet — the PSP Allegrex (sigil-retropie #57) was first. But these are very different MIPS implementations. The Allegrex is a 32-bit MIPS-II derivative optimized for power efficiency on a handheld. The R5900 is a custom 64-bit-wide MIPS III with 128-bit SIMD extensions and dual-issue instruction-level parallelism — considerably more aggressive, designed for peak throughput at the cost of power and die area.
Xbox 360 — system #62 (0f78790)
Core: cores/xbox360.sg. uart=62 PASS. apps/xbox360 (EL0), loads /roms/game.xex (XEX executable format).
CPU: IBM "Xenon" — triple-core PowerPC
Xenon is an IBM PowerPC 5xx-derived design with three cores, each supporting 2-way SMT — giving 6 hardware threads at 3.2GHz. Xenon is PPC Book-E derived, closer to the PPC 970 than to the G3, but uses the same PowerPC ABI. Execution is in-order with AltiVec-style VMX for SIMD, making it compatible with the same VMX instruction patterns used by the GameCube's Gekko and the Wii's Broadway (both already in the fleet).
The triple-core SMT design was Microsoft's answer to the Cell Broadband Engine in the PS3 — rather than asymmetric SPEs, Microsoft chose symmetric homogeneous cores that are easier to program with standard threading models.
GPU: ATI "Xenos" — unified shader architecture
Xenos is the first GPU with a unified shader architecture — vertex and pixel shaders share the same pool of 48 shader units, allocated dynamically by the driver based on workload. This was revolutionary for 2005 and directly influenced the Direct3D 10 and OpenGL 4 specifications. Xenos uses tile-based rendering with 10MB of eDRAM for fast resolve operations (MSAA, HDR tone mapping) without going out to the main memory bus.
Memory: 512MB GDDR3 unified — CPU and GPU share the same pool, with no dedicated VRAM. The memory controller arbitrates between Xenon's cache misses and Xenos's texture fetches.

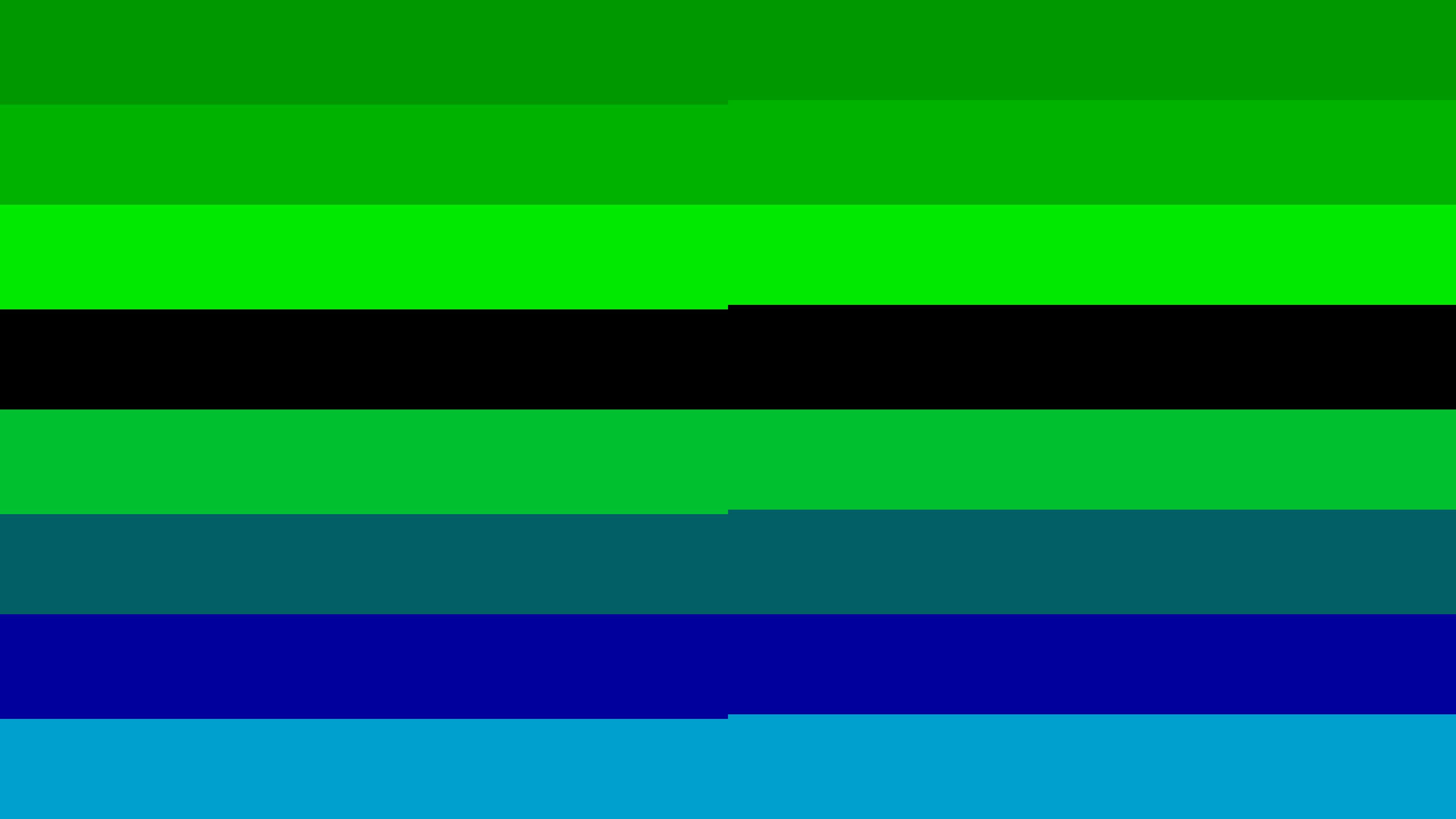

Resolution: 1280×720 (720p HD) — the first HD-capable console in the fleet. x360_render copies the Xenos back-buffer to the 720p display framebuffer, which the compositor scales to the preview window.
PowerPC lineage note
With Xenon, the fleet's PowerPC family now spans three consoles across two decades:
The HAL seam database already covers the key PPC primitives (ppc_bat, ppc_htab, ppc_tlb, ppc_altivec/VMX) that all three PPC console lines share.
Fleet milestone: 62 LAUNCHABLE systems
The last 10 systems to join the fleet, in order:
| # | System | CPU | Year | Notable |
|---|---|---|---|---|
| 53 | 3DO | ARM60 | 1993 | First ARM console in fleet |
| 55 | Vectrex | 6809 | 1982 | Vector display output |
| 56 | Nintendo DS | ARM9 ARMv5TE | 2004 | First Thumb ISA in fleet |
| 57 | PSP | MIPS Allegrex | 2005 | First MIPS + widescreen |
| 58 | GameCube | PPC Gekko (IBM 750CXe) | 2001 | First G3 console |
| 59 | Wii | PPC Broadway | 2006 | G3 line sequel |
| 60 | Nintendo 3DS | ARM11 MPCore | 2011 | First multi-core in fleet |
| 61 | PlayStation 2 | MIPS R5900 EE | 2000 | 128-bit MIPS SIMD |
| 62 | Xbox 360 | PPC Xenon (3-core SMT) | 2005 | First HD + unified shader |
